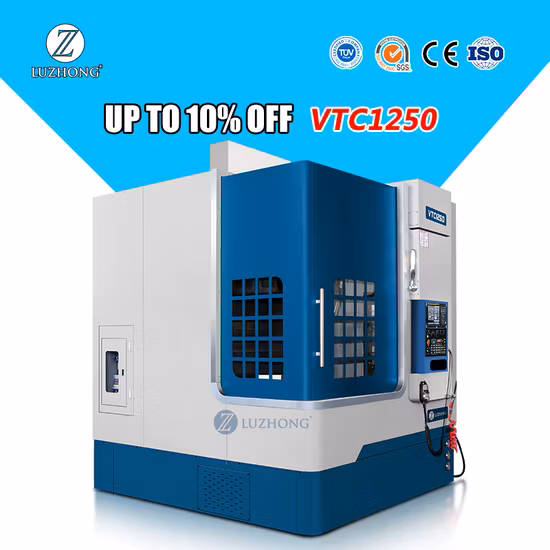

CNC cheap high quality VTC1250 Vertical Lathe Machine
Description
Basic Info.
| Model NO. | VTC1250 |
| Process Usage | Metal-Cutting CNC Machine Tools |
| Movement Method | Linear Control |
| Control Method | Closed-Loop Control |
| Numerical Control | CNC/MNC |
| Processing Precision | 0.01~0.02(mm) |
| Performance Classification | High-End CNC Machine Tools |
| Certification | GS, CE, RoHS, ISO 9001 |
| Condition | New |
| Max.tool post travel horizontal | -50-700mm |
| Distance between tool post and chuck sur | 150-950mm |
| Max.tool post travel vertival | 800mm |
| Spindle chuck diameter | 1000mm hydraulic |
| Cutting feed speed | 0.1-5000mm/min |
| X axis motor power | 2.8kw |
| Z axis rapid traverse | 12000mm/min |
| X axis rapid traverse | 15000mm/min |
| Spindle load | 1500kg |
| Spindle bearing configuration | thrust roller bearing |
| Max.torque of spindle | 1050NM |
| Spindle speed range | 50-500rpm |
| Max.turning diameter | 1000/1250(disc type) |
| Spindle nose | A2-11 |
| Max. Swing diameter of workpiece | 1250mm |
| Transport Package | Plywood Case |
| Specification | 3060*3010*3500mm |
| Trademark | LUZHONG MACHINE TOOL |
| Origin | China |
| Production Capacity | 2000 Pieces/Year |
Packaging & Delivery
Package Size 306.00cm * 301.00cm * 350.00cm Package Gross Weight 11500.000kgProduct Description
CNC cheap high quality VTC1250 Vertical Lathe MachineProduct Description
Product Parameters
Product main technical specifications:
| Specifications | VTC1250 |
| Max. turning diameter of workpiece | 1250mm |
| Max.turning diameter | 1000/1250(disc type) |
| Vertical travel of tool post | 1000mm |
| Horizontal travel of tool post | -50-700mm |
| Spindle model | A2-11 |
| Spindle load | 1500KG |
| Spindle speed range | 50-600rpm,1:2.5 Speed ratio |
| Main motor power | 35kw(Rated speed750) |
| X axis rapid feed traverse | 15m/min |
| Z axis rapid feed traverse | 12m/min |
| Cutting feed speed | 0.1-5000mm/min |
| X axs motor power/Torque | 3.14 kW /20NM |
| Z axs motor power/Torque | 3.14 kW /20NM brake |
| Tool post type | 4 station electric tool post |
| Tool shank size | 40×40mm |
| Chuck diameter | 1000mm(manual 4 jaw) |
| Positioning accuracy | ±0.01mm |
| Repeat positioning accuracy | ±0.0075mm |
| Machine weight | ≈12800kg |
| Overall dimensions | 3060×3010×3500mm |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
